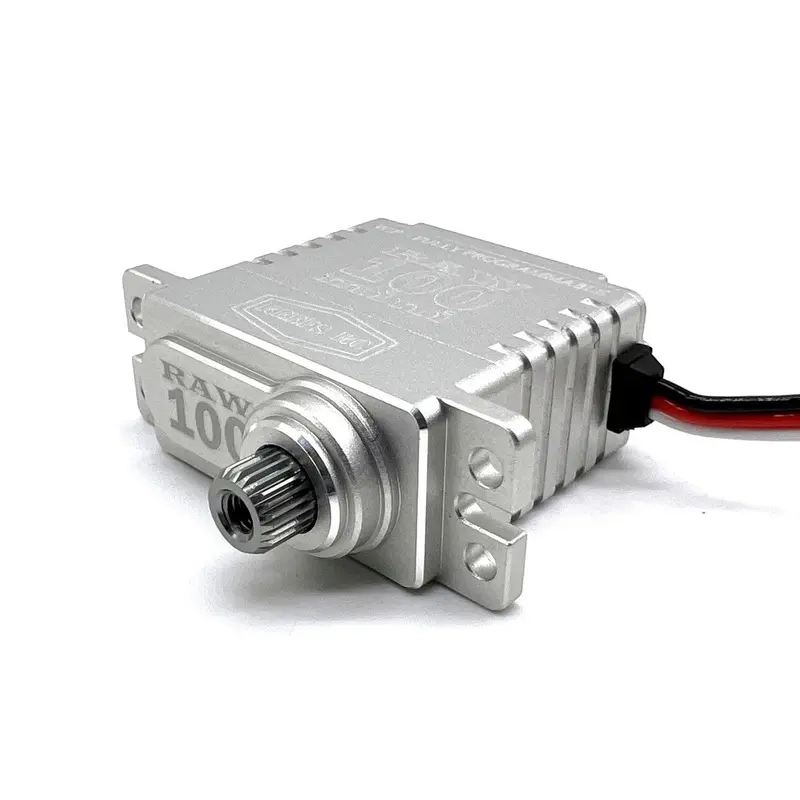

Reef’s RC RAW 100 Mini Programmable Brushless Servo

Description

REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).

Features:

High Torque High Speed Mini Coreless Servo

Submarine Waterproof

Magnetic Angle Sensor, Pulse Width Modulation Control

REEFS LINK required for Programming

Temp Rate: -15C ~ +70C

Voltage: 6V-8.4V; Dead Band Width: 2microseconds

Specifications:

All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline

Dimension (LWH):1.16x.55×1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g

Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V

Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V

Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V

Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V
