Description
Features:
- Explosive output power – 10% increase in maximum output power.

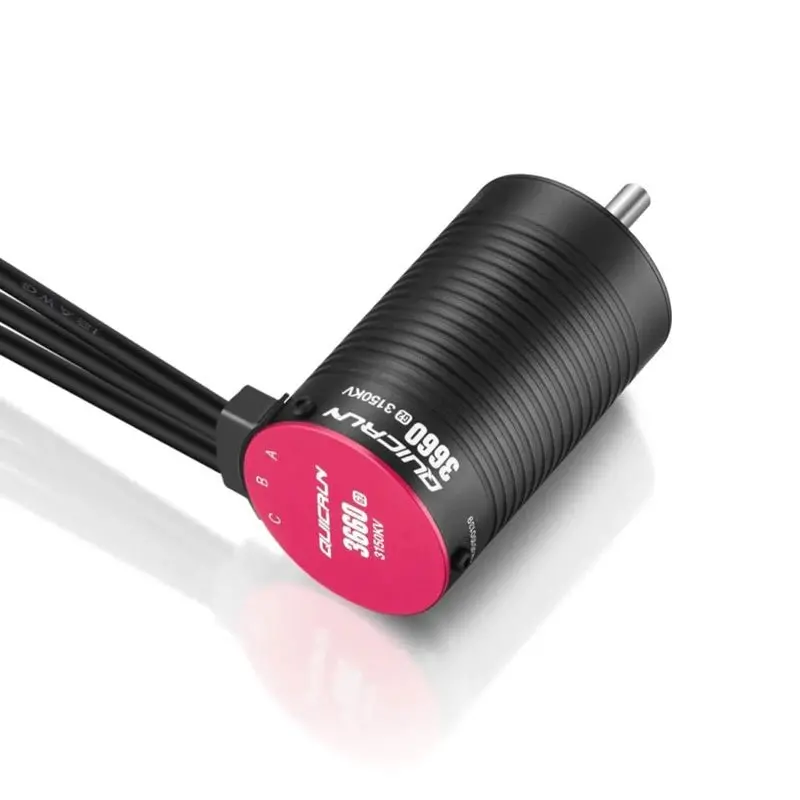

- Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3660/3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
- Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
- Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
- The QUICRUN 3660 / 3652 SL brushless G2 motor is ideal for off-road or on-road hobbiests, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
- QUICRUN motors feature an explosion-proof rotor design with reinforced aluminum end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
- This QUICRUN 3660/3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminum, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200 Degree C high-temperature-resistant enameled wire for strong performance and longevity.
- The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.
Specifications:
- LiPos: 2-3S
- No-Load Current: 5.4A
- Diameter/Length: 36mm (1.42″) / L: 60mm (2.36″)
- Shaft Diameter/Length: 5mm (0.20″) / L: 18.5mm (0.73″)
- Bearing Size (mm): Front: D16*D5*T5 / Rear: D13*D5*T4
- Poles: 4
- Weight (g): 273g
- Applications: 1/10 Truck, Monster Truck
